Explorer Cases

Technical specifications

Internal dimensions

190 × 125 × 85 mm

External dimensions

216 × 180 × 102 mm

Weight, empty

0.70 kg

Lid depth

20 mm

Base depth

65 mm

Weight with foam

0.80 kg

Buoyancy, maximum

1.40 kg

Operating temperature

-33 to +90 °C

Model features

• •Manual pressure release valve
• •Pvc waterproof i. d. removable label
• •Corrosion proof metal hinges with lid stay features
• •Latch
• •Sealing o-ring

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

190 × 125 × 135 mm

External dimensions

216 × 180 × 152 mm

Weight, empty

0.85 kg

Lid depth

20 mm

Base depth

115 mm

Weight with foam

0.92 kg

Buoyancy, maximum

2.40 kg

Operating temperature

-33 to +90 °C

Ingress protection

IP67 (manufacturer specification)

Model features

• •Manual pressure release valve
• •Pvc waterproof i. d. removable label
• •Corrosion proof metal hinges with lid stay features
• •Internal slots
• •Latch
• •Sealing o-ring

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

220 × 160 × 95 mm

External dimensions

246 × 215 × 112 mm

Weight, empty

0.88 kg

Lid depth

20 mm

Base depth

75 mm

Weight with foam

0.99 kg

Buoyancy, maximum

2.30 kg

Operating temperature

-33 to +90 °C

Model features

• •Manual pressure release valve
• •Pvc waterproof i. d. removable label
• •Corrosion proof metal hinges with lid stay features
• •Internal slots
• •Latch
• •Sealing o-ring

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

240 × 240 × 370 mm

External dimensions

304 × 269 × 388 mm

Weight, empty

2.45 kg

Lid depth

70 mm

Base depth

300 mm

Weight with foam

2.87 kg

Buoyancy, maximum

15.6 kg

Operating temperature

-24 to +90 °C

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

276 × 200 × 120 mm

External dimensions

316 × 270 × 143 mm

Weight, empty

1.32 kg

Lid depth

35 mm

Base depth

85 mm

Weight with foam

1.46 kg

Buoyancy, maximum

4.20 kg

Operating temperature

-33 to +90 °C

Ingress protection

IP67 (manufacturer specification)

Model features

• •Pvc waterproof i. d. removable label
• •Lid can be set to slide-off
• •Counterbalance supports
• •Automatic valve
• •Corrosion proof metal hinges with lid stay features
• •Internal slots
• •Latch

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

220 × 160 × 145 mm

External dimensions

246 × 215 × 162 mm

Weight, empty

1.16 kg

Lid depth

20 mm

Base depth

125 mm

Weight with foam

1.29 kg

Buoyancy, maximum

3.90 kg

Operating temperature

-33 to +90 °C

Model features

• •Manual pressure release valve
• •Pvc waterproof i. d. removable label
• •Corrosion proof metal hinges with lid stay features
• •Internal slots
• •Latch
• •Sealing o-ring

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

276 × 200 × 120 mm

External dimensions

305 × 270 × 144 mm

Weight, empty

1.62 kg

Lid depth

35 mm

Base depth

85 mm

Weight with foam

1.83 kg

Buoyancy, maximum

4.20 kg

Model features

• •Pvc waterproof i. d. removable label
• •Lid can be set to slide-off
• •Counterbalance supports
• •Corrosion proof metal hinges with lid stay features
• •Internal slots
• •Latch
• •Sealing o-ring

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

276 × 200 × 170 mm

External dimensions

316 × 270 × 192 mm

Weight, empty

1.54 kg

Lid depth

35 mm

Base depth

135 mm

Weight with foam

1.75 kg

Buoyancy, maximum

6.70 kg

Operating temperature

-33 to +90 °C

Ingress protection

IP67 (manufacturer specification)

Model features

• •Pvc waterproof i. d. removable label
• •Lid can be set to slide-off
• •Counterbalance supports
• •Automatic valve
• •Corrosion proof metal hinges with lid stay features
• •Internal slots
• •Latch

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

276 × 200 × 170 mm

External dimensions

305 × 270 × 194 mm

Weight, empty

1.93 kg

Lid depth

35 mm

Base depth

135 mm

Weight with foam

2.12 kg

Buoyancy, maximum

6.70 kg

Model features

• •Pvc waterproof i. d. removable label
• •Lid can be set to slide-off
• •Counterbalance supports
• •Corrosion proof metal hinges with lid stay features
• •Internal slots
• •Latch
• •Sealing o-ring

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

300 × 210 × 58 mm

External dimensions

326 × 269 × 75 mm

Weight, empty

1.10 kg

Lid depth

20 mm

Base depth

38 mm

Weight with foam

1.20 kg

Buoyancy, maximum

2.10 kg

Model features

• •Manual pressure release valve
• •Pvc waterproof i. d. removable label
• •Counterbalance supports
• •Corrosion proof metal hinges with lid stay features
• •Internal slots
• •Sealing o-ring

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

310 × 100 × 108 mm

External dimensions

336 × 159 × 127 mm

Weight, empty

0.95 kg

Lid depth

20 mm

Base depth

88 mm

Weight with foam

1.05 kg

Buoyancy, maximum

2.5 kg

Operating temperature

-33 to +90 °C

Ingress protection

IP67 (manufacturer specification)

Model features

• •Manual pressure release valve
• •Pvc waterproof i. d. removable label
• •Counterbalance supports
• •Corrosion proof metal hinges with lid stay features
• •Internal slots
• •Sealing o-ring

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

330 × 234 × 170 mm

External dimensions

360 × 304 × 192 mm

Weight, empty

1.78 kg

Lid depth

68 mm

Base depth

102 mm

Weight with foam

2.02 kg

Buoyancy, maximum

7.10 kg

Operating temperature

-33 to +90 °C

Ingress protection

IP67 (manufacturer specification)

Model features

• •Pvc waterproof i. d. removable label
• •Lid can be set to slide-off
• •Counterbalance supports
• •Automatic valve
• •Corrosion proof metal hinges with lid stay features
• •Internal slots
• •Latch

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

330 × 234 × 170 mm

External dimensions

360 × 304 × 194 mm

Weight, empty

2.29 kg

Lid depth

68 mm

Base depth

102 mm

Weight with foam

2.51 kg

Buoyancy, maximum

7 kg

Model features

• •Pvc waterproof i. d. removable label
• •Lid can be set to slide-off
• •Counterbalance supports
• •Corrosion proof metal hinges with lid stay features
• •Internal slots
• •Latch
• •Sealing o-ring

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

330 × 350 × 170 mm

External dimensions

360 × 420 × 194 mm

Weight, empty

2.92 kg

Lid depth

68 mm

Base depth

102 mm

Weight with foam

3.30 kg

Buoyancy, maximum

10.60 kg

Operating temperature

-33 to +90 °C

Model features

• •Pvc waterproof i. d. removable label
• •Lid can be set to slide-off
• •Counterbalance supports
• •Corrosion proof metal hinges with lid stay features
• •Internal slots
• •Latch
• •Sealing o-ring

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

380 × 270 × 155 mm

External dimensions

420 × 340 × 177 mm

Weight, empty

2.20 kg

Lid depth

47 mm

Base depth

108 mm

Weight with foam

2.53 kg

Buoyancy, maximum

10 kg

Operating temperature

-33 to +90 °C

Ingress protection

IP67 (manufacturer specification)

Model features

• •Automatic valve
• •Corrosion proof metal hinges with lid stay features
• •Fixing points
• •Internal slots
• •Jam free latches with easy-opening mechanism
• •Pvc waterproof i. d. removable label
• •Soft grip rubber handle

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

380 × 270 × 180 mm

External dimensions

420 × 340 × 202 mm

Weight, empty

2.26 kg

Lid depth

47 mm

Base depth

133 mm

Weight with foam

2.66 kg

Buoyancy, maximum

12.30 kg

Operating temperature

-33 to +90 °C

Ingress protection

IP67 (manufacturer specification)

Model features

• •Pvc waterproof i. d. removable label
• •Soft grip rubber handle
• •Counterbalance supports
• •Automatic valve
• •Corrosion proof metal hinges with lid stay features
• •Fixing points
• •Internal slots

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

380 × 270 × 230 mm

External dimensions

420 × 340 × 252 mm

Weight, empty

2.59 kg

Lid depth

57 mm

Base depth

173 mm

Weight with foam

3.09 kg

Buoyancy, maximum

16 kg

Operating temperature

-33 to +90 °C

Ingress protection

IP67 (manufacturer specification)

Model features

• •Pvc waterproof i. d. removable label
• •Soft grip rubber handle
• •Counterbalance supports
• •Automatic valve
• •Corrosion proof metal hinges with lid stay features
• •Fixing points
• •Internal slots

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

380 × 270 × 180 mm

External dimensions

410 × 340 × 205 mm

Weight, empty

3.14 kg

Lid depth

47 mm

Base depth

133 mm

Weight with foam

3.58 kg

Buoyancy, maximum

12.40 kg

Model features

• •Pvc waterproof i. d. removable label
• •Soft grip rubber handle
• •Counterbalance supports
• •Corrosion proof metal hinges with lid stay features
• •Fixing points
• •Internal slots
• •Jam free latches with easy-opening mechanism

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

420 × 300 × 95 mm

External dimensions

457 × 366 × 118 mm

Weight, empty

2.2 kg

Lid depth

35 mm

Base depth

60 mm

Weight with foam

2.6 kg

Buoyancy, maximum

6.8 kg

Operating temperature

-33 to +90 °C

Model features

• •Lid can be set to slide-off
• •Stainless steel reinforced padlockable points
• •Ability to stack
• •Automatic valve
• •Internal slots
• •Jam free latches with easy-opening mechanism
• •Pvc waterproof i. d. removable label

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

420 × 300 × 160 mm

External dimensions

457 × 366 × 183 mm

Weight, empty

2.6 kg

Lid depth

35 mm

Base depth

125 mm

Weight with foam

3.2 kg

Buoyancy, maximum

14.2 kg

Operating temperature

-33 to +90 °C

Model features

• •Stainless steel reinforced padlockable points
• •Ability to stack
• •Automatic purge valve
• •Internal slots
• •Jam free latches with easy-opening mechanism
• •Pvc waterproof i. d. removable label
• •Lid can be set to slide-off

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

445 × 345 × 125 mm

External dimensions

485 × 414 × 149 mm

Weight, empty

2.50 kg

Lid depth

47 mm

Base depth

78 mm

Weight with foam

2.92 kg

Buoyancy, maximum

10.80 kg

Operating temperature

-33 to +90 °C

Ingress protection

IP67 (manufacturer specification)

Model features

• •Lid can be set to slide-off
• •Stainless steel reinforced padlockable points
• •Ability to stack
• •Automatic valve
• •Internal slots
• •Jam free latches with easy-opening mechanism
• •Pvc waterproof i. d. removable label

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

445 × 345 × 125 mm

External dimensions

474 × 415 × 149 mm

Weight, empty

3.40 kg

Lid depth

47 mm

Base depth

78 mm

Weight with foam

3.90 kg

Buoyancy, maximum

10.70 kg

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

445 × 345 × 190 mm

External dimensions

485 × 414 × 212 mm

Weight, empty

2.91 kg

Lid depth

47 mm

Base depth

143 mm

Weight with foam

3.58 kg

Buoyancy, maximum

19.8 kg

Operating temperature

-33 to +90 °C

Ingress protection

IP67 (manufacturer specification)

Model features

• •Lid can be set to slide-off
• •Soft grip rubber handle
• •Automatic valve
• •Corrosion proof metal hinges with lid stay features
• •Fixing points
• •Internal slots
• •Jam free latches with easy-opening mechanism

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

445 × 345 × 190 mm

External dimensions

474 × 415 × 214 mm

Weight, empty

4 kg

Lid depth

47 mm

Base depth

143 mm

Weight with foam

4.70 kg

Buoyancy, maximum

29.20 kg

Model features

• •Corrosion proof metal hinges with lid stay features
• •Fixing points
• •Internal slots
• •Jam free latches with easy-opening mechanism
• •Sealing o-ring
• •Manual pressure release valve
• •Pvc waterproof i. d. removable label

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

480 × 370 × 205 mm

External dimensions

520 × 440 × 230 mm

Weight, empty

3.41 kg

Lid depth

50 mm

Base depth

155 mm

Weight with foam

4.17 kg

Buoyancy, maximum

24.80 kg

Operating temperature

-33 to +90 °C

Ingress protection

IP67 (manufacturer specification)

Model features

• •Sealing o-ring
• •Pvc waterproof i. d. removable label
• •Soft grip rubber handle
• •Automatic valve
• •Corrosion proof metal hinges with lid stay features
• •Fixing points
• •Internal slots

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

480 × 370 × 205 mm

External dimensions

520 × 435 × 230 mm

Weight, empty

4.64 kg

Lid depth

50 mm

Base depth

155 mm

Weight with foam

5.40 kg

Buoyancy, maximum

24.70 kg

Model features

• •Manual pressure release valve
• •Pvc waterproof i. d. removable label
• •Soft grip rubber handle
• •Corrosion proof metal hinges with lid stay features
• •Fixing points
• •Internal slots
• •Jam free latches with easy-opening mechanism

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

480 × 370 × 255 mm

External dimensions

520 × 440 × 276 mm

Weight, empty

4.5 kg

Lid depth

50 mm

Base depth

205 mm

Weight with foam

5.3 kg

Buoyancy, maximum

28.2 kg

Operating temperature

-33 to +90 °C

Ingress protection

IP67 (manufacturer specification)

Model features

• •Sealing o-ring
• •Pvc waterproof i. d. removable label
• •Soft grip rubber handle
• •Automatic valve
• •Corrosion proof metal hinges with lid stay features
• •Fixing points
• •Internal slots

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

516 × 296 × 160 mm

External dimensions

585 × 386 × 198 mm

Weight, empty

3.3 kg

Lid depth

50 mm

Base depth

110 mm

Weight with foam

3.9 kg

Buoyancy, maximum

15.1 kg

Operating temperature

-33 to +90 °C

Model features

• •Stainless steel reinforced padlockable points
• •Ability to stack
• •Automatic purge valve
• •Lid can be set slide-off
• •Pull release latch
• •Corrosion proof metal hinges with lid stay features
• •Internal slots

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max. The manufacturer describes a shared trolley system with model 5140; confirm the wheel/handle configuration when ordering.

Technical specifications

Internal dimensions

517 × 277 × 173 mm

External dimensions

546 × 347 × 197 mm

Weight, empty

3.80 kg

Lid depth

50 mm

Base depth

123 mm

Weight with foam

4.50 kg

Buoyancy, maximum

15.80 kg

Operating temperature

-33 to +90 °C

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

517 × 277 × 217 mm

External dimensions

546 × 347 × 247 mm

Weight, empty

6 kg

Lid depth

50 mm

Base depth

167 mm

Weight with foam

7 kg

Buoyancy, maximum

21.50 kg

Operating temperature

-33 to +90 °C

Model features

• •Lid can be set to slide-off
• •Soft grip rubber handle
• •Wheels with bearings
• •Corrosion proof metal hinges with lid stay features
• •Fixing points
• •Internal slots
• •Jam free latches with easy-opening mechanism

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

516 × 296 × 310 mm

External dimensions

585 × 386 × 348 mm

Weight, empty

4.8 kg

Lid depth

60 mm

Base depth

250 mm

Weight with foam

6 kg

Buoyancy, maximum

34.4 kg

Operating temperature

-33 to +90 °C

Model features

• •Stainless steel reinforced padlockable points
• •Ability to stack
• •Automatic purge valve
• •Pull release latch
• •Corrosion proof metal hinges with lid stay features
• •Internal slots
• •Sealing o-ring

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max. The manufacturer describes a shared trolley system with model 5140; confirm the wheel/handle configuration when ordering.

Technical specifications

Internal dimensions

520 × 285 × 125 mm

External dimensions

550 × 350 × 145 mm

Weight, empty

2.35 kg

Lid depth

30 mm

Base depth

95 mm

Weight with foam

2.85 kg

Buoyancy, maximum

12.7 kg

Operating temperature

-33 to +90 °C

Model features

• •Lid can be set to slide-off
• •Soft grip rubber handle
• •Automatic purge valve
• •Corrosion proof metal hinges with lid stay features
• •Fixing points
• •Internal slots
• •Jam free latches with easy-opening mechanism

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

520 × 285 × 150 mm

External dimensions

550 × 350 × 170 mm

Weight, empty

2.55 kg

Lid depth

55 mm

Base depth

95 mm

Weight with foam

3.05 kg

Buoyancy, maximum

12.7 kg

Operating temperature

-33 to +90 °C

Ingress protection

IP67 (manufacturer specification)

Model features

• •Lid can be set to slide-off
• •Soft grip rubber handle
• •Automatic purge valve
• •Corrosion proof metal hinges with lid stay features
• •Fixing points
• •Internal slots
• •Jam free latches with easy-opening mechanism

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

520 × 285 × 180 mm

External dimensions

550 × 350 × 200 mm

Weight, empty

3.75 kg

Lid depth

30 mm

Base depth

150 mm

Weight with foam

4.30 kg

Buoyancy, maximum

20 kg

Operating temperature

-33 to +90 °C

Model features

• •Sealing o-ring
• •Pvc waterproof i. d. removable label
• •Writable name tag
• •Lid can be set slide-off
• •Reinforced padlockable points
• •Easy to open release telescopic handle (5218-5221)
• •Pull release latch

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

520 × 285 × 205 mm

External dimensions

550 × 350 × 225 mm

Weight, empty

3.90 kg

Lid depth

55 mm

Base depth

150 mm

Weight with foam

4.50 kg

Buoyancy, maximum

20 kg

Operating temperature

-33 to +90 °C

Model features

• •Sealing o-ring
• •Pvc waterproof i. d. removable label
• •Writable name tag
• •Lid can be set slide-off
• •Reinforced padlockable points
• •Easy to open release telescopic handle (5218-5221)
• •Pull release latch

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

538 × 405 × 250 mm

External dimensions

607 × 475 × 275 mm

Weight, empty

7 kg

Lid depth

60 mm

Base depth

190 mm

Weight with foam

8.25 kg

Buoyancy, maximum

37.20 kg

Operating temperature

-33 to +90 °C

Ingress protection

IP67 (manufacturer specification)

Model features

• •Two man lift side handles
• •Stainless steel reinforced padlockable points with clips
• •Fixing points (5325-5326)
• •Corrosion proof metal hinges with lid stay features
• •Internal slots
• •Jam free latches with easy-opening mechanism
• •Sealing o-ring

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

538 × 405 × 250 mm

External dimensions

627 × 475 × 292 mm

Weight, empty

10 kg

Lid depth

60 mm

Base depth

190 mm

Weight with foam

11.25 kg

Buoyancy, maximum

37.20 kg

Operating temperature

-33 to +90 °C

Model features

• •Two man lift side handles
• •Stainless steel reinforced padlockable points with clips
• •Fixing points (5325-5326)
• •Self oiling free running wheels
• •Corrosion proof metal hinges with lid stay features
• •Internal slots
• •Jam free latches with easy-opening mechanism

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

580 × 440 × 220 mm

External dimensions

650 × 510 × 245 mm

Weight, empty

7.16 kg

Lid depth

60 mm

Base depth

160 mm

Weight with foam

8.39 kg

Buoyancy, maximum

36.70 kg

Operating temperature

-33 to +90 °C

Model features

• •Pvc waterproof i. d. removable label
• •Soft grip rubber handle
• •Two man lift side handles
• •Corrosion proof metal hinges with lid stay features
• •Internal slots
• •Jam free latches with easy-opening mechanism
• •Sealing o-ring

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

610 × 610 × 271 mm

External dimensions

680 × 696 × 293 mm

Weight, empty

10 kg

Lid depth

50 mm

Base depth

221 mm

Weight with foam

11.80 kg

Buoyancy, maximum

74 kg

Operating temperature

-33 to +90 °C

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

580 × 440 × 220 mm

External dimensions

670 × 510 × 262 mm

Weight, empty

9.17 kg

Lid depth

60 mm

Base depth

160 mm

Weight with foam

10.40 kg

Buoyancy, maximum

36.70 kg

Operating temperature

-33 to +90 °C

Model features

• •Pvc waterproof i. d. removable label
• •Soft grip rubber handle
• •Two man lift side handles
• •Self oiling free running wheels
• •Corrosion proof metal hinges with lid stay features
• •Internal slots
• •Jam free latches with easy-opening mechanism

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

580 × 440 × 330 mm

External dimensions

670 × 510 × 372 mm

Weight, empty

10.54 kg

Lid depth

60 mm

Base depth

270 mm

Weight with foam

12.65 kg

Buoyancy, maximum

62 kg

Operating temperature

-33 to +90 °C

Model features

• •Pvc waterproof i. d. removable label
• •Soft grip rubber handle
• •Two man lift side handles
• •Self oiling free running wheels
• •Corrosion proof metal hinges with lid stay features
• •Internal slots
• •Jam free latches with easy-opening mechanism

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

763 × 399 × 260 mm

External dimensions

832 × 466 × 279 mm

Weight, empty

7.7 kg

Lid depth

50 mm

Base depth

210 mm

Weight with foam

9.5 kg

Buoyancy, maximum

57.5 kg

Operating temperature

-33 to +90 °C

Ingress protection

IP67 (manufacturer specification)

Model features

• •Jam free latches with easy-opening mechanism
• •Sealing o-ring
• •Pvc waterproof i. d. removable label
• •Self oiling free running wheels
• •Corrosion proof metal hinges with lid stay features
• •Internal slots
• •Large front handle

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

765 × 485 × 305 mm

External dimensions

860 × 560 × 355 mm

Weight, empty

13.56 kg

Lid depth

60 mm

Base depth

245 mm

Weight with foam

16.39 kg

Buoyancy, maximum

81.80 kg

Operating temperature

-33 to +90 °C

Ingress protection

IP67 (manufacturer specification)

Model features

• •Pvc waterproof i. d. removable label
• •Retractable handle
• •Two man lift side handles
• •Self oiling free running wheels
• •Corrosion proof metal hinges with lid stay features
• •Internal slots
• •Large front handle

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

763 × 399 × 350 mm

External dimensions

832 × 466 × 369 mm

Weight, empty

9.4 kg

Lid depth

50 mm

Base depth

300 mm

Weight with foam

11.8 kg

Buoyancy, maximum

82.2 kg

Operating temperature

-33 to +90 °C

Ingress protection

IP67 (manufacturer specification)

Model features

• •Jam free latches with easy-opening mechanism
• •Sealing o-ring
• •Pvc waterproof i. d. removable label
• •Self oiling free running wheels
• •Corrosion proof metal hinges with lid stay features
• •Internal slots
• •Large front handle

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

765 × 485 × 415 mm

External dimensions

860 × 560 × 460 mm

Weight, empty

15.02 kg

Lid depth

60 mm

Base depth

355 mm

Weight with foam

18.87 kg

Buoyancy, maximum

118.50 kg

Operating temperature

-33 to +90 °C

Model features

• •Pvc waterproof i. d. removable label
• •Retractable handle
• •Two man lift side handles
• •Self oiling free running wheels
• •Corrosion proof metal hinges with lid stay features
• •Internal slots
• •Large front handle

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

770 × 580 × 265 mm

External dimensions

836 × 641 × 304 mm

Weight, empty

10.30 kg

Lid depth

90 mm

Base depth

175 mm

Weight with foam

12.60 kg

Buoyancy, maximum

70 kg

Operating temperature

-33 to +90 °C

Model features

• •Stainless steel reinforced padlockable points
• •Ability to stack
• •Automatic valve
• •Self oiling free running wheels
• •Two man lift side handles

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

770 × 580 × 450 mm

External dimensions

836 × 641 × 489 mm

Weight, empty

15.50 kg

Lid depth

90 mm

Base depth

360 mm

Weight with foam

19.80 kg

Buoyancy, maximum

144 kg

Operating temperature

-33 to +90 °C

Model features

• •Stainless steel reinforced padlockable points
• •Ability to stack

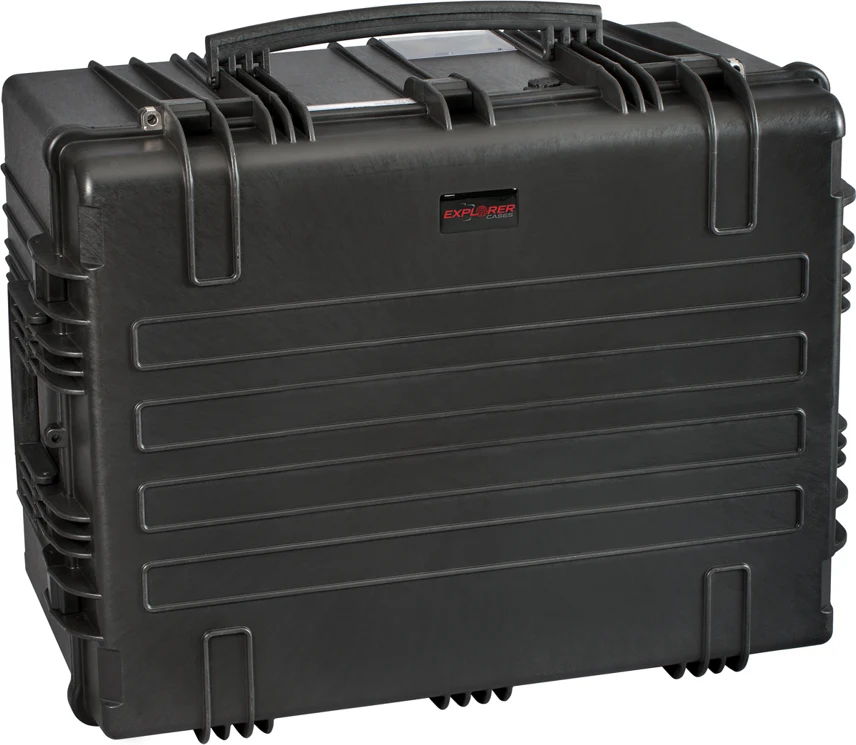

• •Shipping label holder (7745)
• •Automatic valve
• •Self oiling free running wheels
• •Two man lift side handles

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

780 × 350 × 145 mm

External dimensions

846 × 427 × 167 mm

Weight, empty

5.50 kg

Lid depth

42 mm

Base depth

103 mm

Weight with foam

6.40 kg

Buoyancy, maximum

25.3 kg

Operating temperature

-33 to +90 °C

Model features

• •Ability to stack
• •Side handles
• •Practical handle
• •Automatic valve
• •Internal slots
• •Large front handle
• •Jam free latches with easy-opening mechanism

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

880 × 345 × 300 mm

External dimensions

950 × 415 × 338 mm

Weight, empty

6.9 kg

Lid depth

55 mm

Base depth

245 mm

Weight with foam

8.8 kg

Buoyancy, maximum

65 kg

Operating temperature

-33 to +90 °C

Ingress protection

IP67 (manufacturer specification)

Model features

• •Writable name tag
• •Automatic purge valve
• •Wheels
• •Corrosion proof metal hinges with lid stay features
• •Ability to stack
• •Side handles

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

880 × 300 × 305 mm

External dimensions

963 × 368 × 329 mm

Weight, empty

7.8 kg

Lid depth

45 mm

Base depth

260 mm

Weight with foam

9.7 kg

Buoyancy, maximum

61.8 kg

Operating temperature

-33 to +90 °C

Ingress protection

IP67 (manufacturer specification)

Model features

• •Side handles
• •Writable name tag
• •Automatic purge valve
• •Soft grip handle
• •Self oiling free running wheels
• •Corrosion proof metal hinges with lid stay features
• •Sealing o-ring

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

939 × 352 × 137 mm

External dimensions

989 × 415 × 157 mm

Weight, empty

6.70 kg

Lid depth

43 mm

Base depth

94 mm

Weight with foam

7.80 kg

Buoyancy, maximum

27.90 kg

Operating temperature

-33 to +90 °C

Model features

• •Two man lift side handles
• •Wheels with bearings
• •Automatic valve
• •Corrosion proof metal hinges with lid stay features
• •Internal slots
• •Large front handle
• •Jam free latches with easy-opening mechanism

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

936 × 350 × 330 mm

External dimensions

1009 × 412 × 354 mm

Weight, empty

10.2 kg

Lid depth

42 mm

Base depth

288 mm

Weight with foam

12.7 kg

Buoyancy, maximum

84.9 kg

Operating temperature

-33 to +90 °C

Model features

• •Ability to stack
• •Metal clips
• •Wheels
• •Pull release latch
• •Automatic valve
• •Internal slots
• •Large front handle

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

1080 × 620 × 260 mm

External dimensions

1178 × 725 × 287 mm

Weight, empty

17 kg

Lid depth

60 mm

Base depth

200 mm

Weight with foam

20.40 kg

Buoyancy, maximum

120.60 kg

Operating temperature

-33 to +90 °C

Model features

• •Pvc waterproof i. d. removable label
• •Two man lift side handles
• •Stainless steel reinforced padlockable points
• •Automatic valve

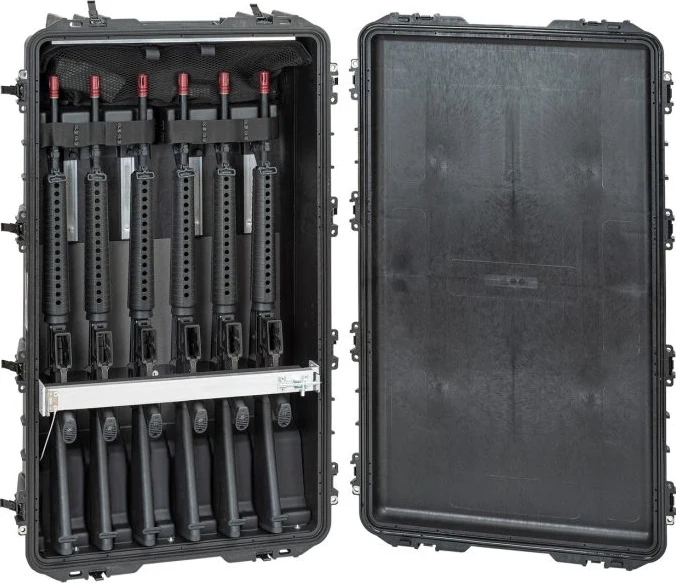

• •Lockable metal bar to secure the weapons
• •Sealing o-ring

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

1080 × 620 × 400 mm

External dimensions

1178 × 718 × 427 mm

Weight, empty

19.80 kg

Lid depth

200 mm

Base depth

200 mm

Weight with foam

26.30 kg

Buoyancy, maximum

120.60 kg

Operating temperature

-33 to +90 °C

Model features

• •Two man lift side handles
• •Stainless steel reinforced padlockable points
• •Heavy duty metal latches
• •Automatic valve
• •Jam free latches with easy-opening mechanism
• •Lockable metal bar to secure the weapons
• •Sealing o-ring

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

1136 × 350 × 135 mm

External dimensions

1189 × 415 × 159 mm

Weight, empty

7.80 kg

Lid depth

42 mm

Base depth

93 mm

Weight with foam

8.80 kg

Buoyancy, maximum

33.30 kg

Operating temperature

-33 to +90 °C

Model features

• •Two man lift side handles
• •Wheels with bearings
• •Automatic valve
• •Corrosion proof metal hinges with lid stay features
• •Internal slots
• •Large front handle
• •Jam free latches with easy-opening mechanism

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

1350 × 350 × 135 mm

External dimensions

1430 × 415 × 159 mm

Weight, empty

8.70 kg

Lid depth

42 mm

Base depth

93 mm

Weight with foam

9.95 kg

Buoyancy, maximum

39.50 kg

Operating temperature

-33 to +90 °C

Model features

• •Two man lift side handles
• •Wheels with bearings
• •Automatic valve
• •Corrosion proof metal hinges with lid stay features
• •Internal slots
• •Large front handle
• •Jam free latches with easy-opening mechanism

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

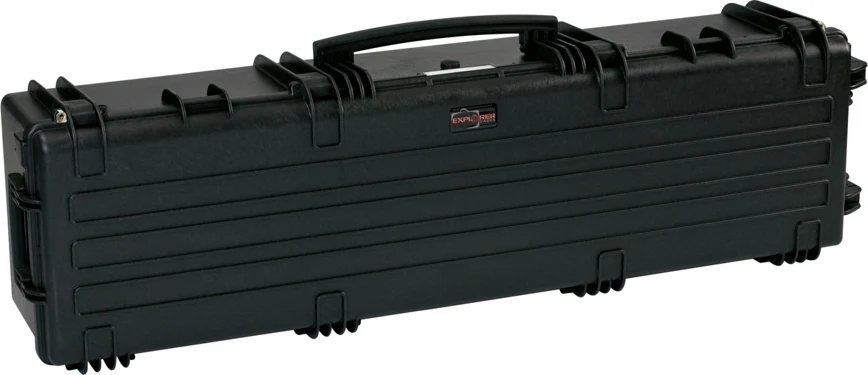

Technical specifications

Internal dimensions

1350 × 350 × 272 mm

External dimensions

1430 × 415 × 296 mm

Weight, empty

11.70 kg

Lid depth

42 mm

Base depth

230 mm

Weight with foam

14.90 kg

Buoyancy, maximum

97.50 kg

Operating temperature

-33 to +90 °C

Model features

• •Sealing o-ring
• •Pvc waterproof i. d. removable label
• •Two man lift side handles
• •Automatic valve
• •Corrosion proof metal hinges with lid stay features
• •Internal slots
• •Large front handle

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

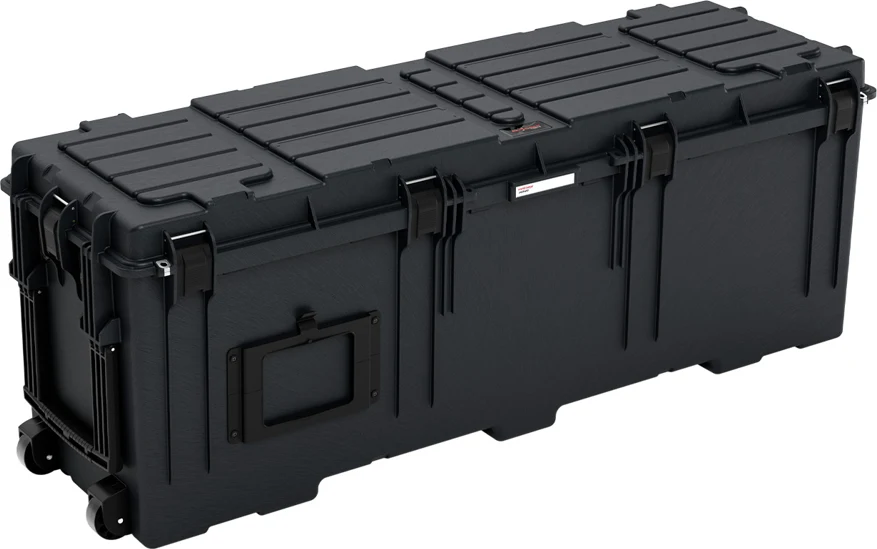

Technical specifications

Internal dimensions

1420 × 420 × 420 mm

External dimensions

1495 × 493 × 544 mm

Weight, empty

20.9 kg

Lid depth

60 mm

Base depth

360 mm

Weight with foam

26.4 kg

Buoyancy, maximum

193 kg

Operating temperature

-33 to +90 °C

Ingress protection

IP67 (manufacturer specification)

Model features

• •Ability to stack
• •Automatic purge valve

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

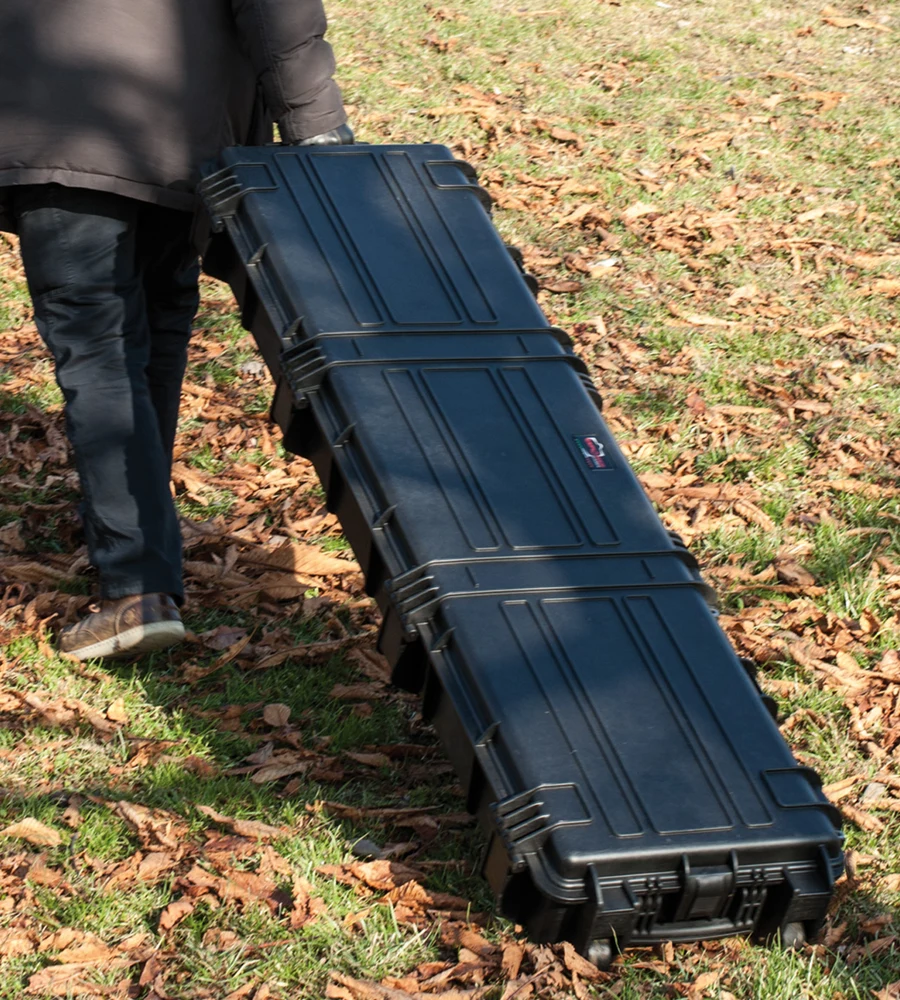

Technical specifications

Internal dimensions

1540 × 377 × 160 mm

External dimensions

1629 × 456 × 183 mm

Weight, empty

11.30 kg

Lid depth

42 mm

Base depth

118 mm

Weight with foam

13.40 kg

Buoyancy, maximum

61.60 kg

Operating temperature

-33 to +90 °C

Model features

• •Sealing o-ring
• •Pvc waterproof i. d. removable label
• •Two man lift side handles
• •Automatic valve
• •Self oiling free running wheels
• •Corrosion proof metal hinges with lid stay features
• •Internal slots

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

1420 × 420 × 420 mm

External dimensions

1495 × 493 × 544 mm

Weight, empty

21.4 kg

Lid depth

60 mm

Base depth

360 mm

Weight with foam

26.9 kg

Buoyancy, maximum

193 kg

Operating temperature

-33 to +90 °C

Ingress protection

IP67 (manufacturer specification)

Model features

• •Ability to stack
• •Automatic purge valve
• •Removable lid
• •Self-oiling free running wheels

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

1420 × 420 × 490 mm

External dimensions

1507 × 493 × 544 mm

Weight, empty

21.3 kg

Lid depth

60 mm

Base depth

430 mm

Weight with foam

27.7 kg

Buoyancy, maximum

230 kg

Operating temperature

-33 to +90 °C

Ingress protection

IP67 (manufacturer specification)

Model features

• •Self oiling free running wheels
• •Corrosion proof metal hinges with lid stay features
• •Top lid o-ring
• •Automatic valve

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

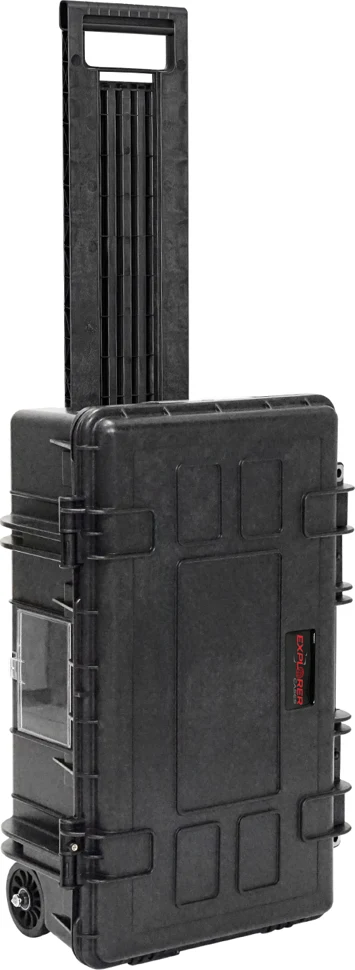

Technical specifications

Internal dimensions

520 × 285 × 180 mm

External dimensions

550 × 350 × 200 mm

Weight, empty

3.75 kg

Lid depth

30 mm

Base depth

150 mm

Weight with foam

4.30 kg

Buoyancy, maximum

20 kg

Operating temperature

-33 to +90 °C

Model features

• •Sealing o-ring
• •Pvc waterproof i. d. removable label
• •Writable name tag
• •Lid can be set slide-off
• •Reinforced padlockable points

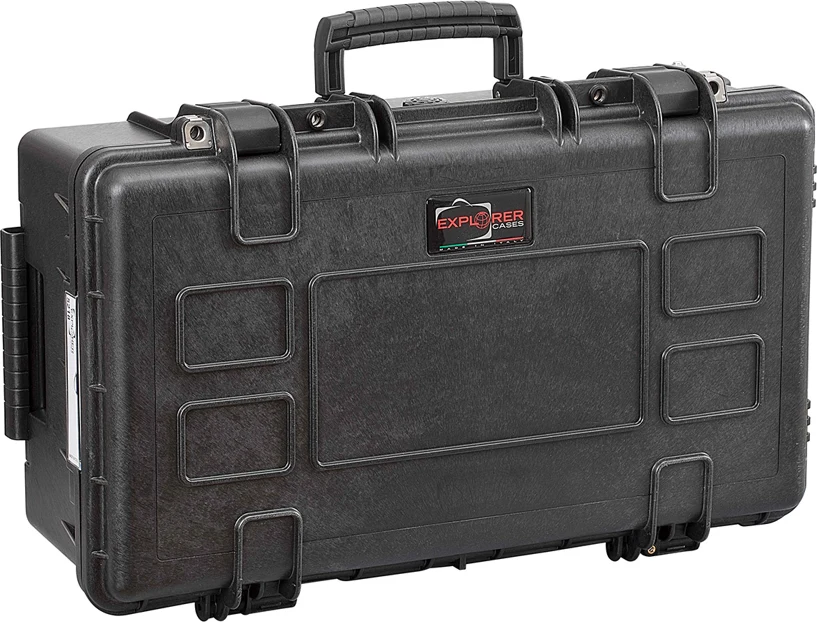

• •Easy to open release telescopic handle (5218-5221)
• •Pull release latch

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.

Technical specifications

Internal dimensions

520 × 285 × 205 mm

External dimensions

550 × 350 × 225 mm

Weight, empty

3.90 kg

Lid depth

55 mm

Base depth

150 mm

Weight with foam

4.50 kg

Buoyancy, maximum

20 kg

Operating temperature

-33 to +90 °C

Model features

• •Sealing o-ring
• •Pvc waterproof i. d. removable label
• •Writable name tag
• •Lid can be set slide-off
• •Reinforced padlockable points
• •Easy to open release telescopic handle (5218-5221)
• •Pull release latch

Dimensions and empty weight are manufacturer figures; inserts, colours and configurations vary. Confirm the exact version with Max.
